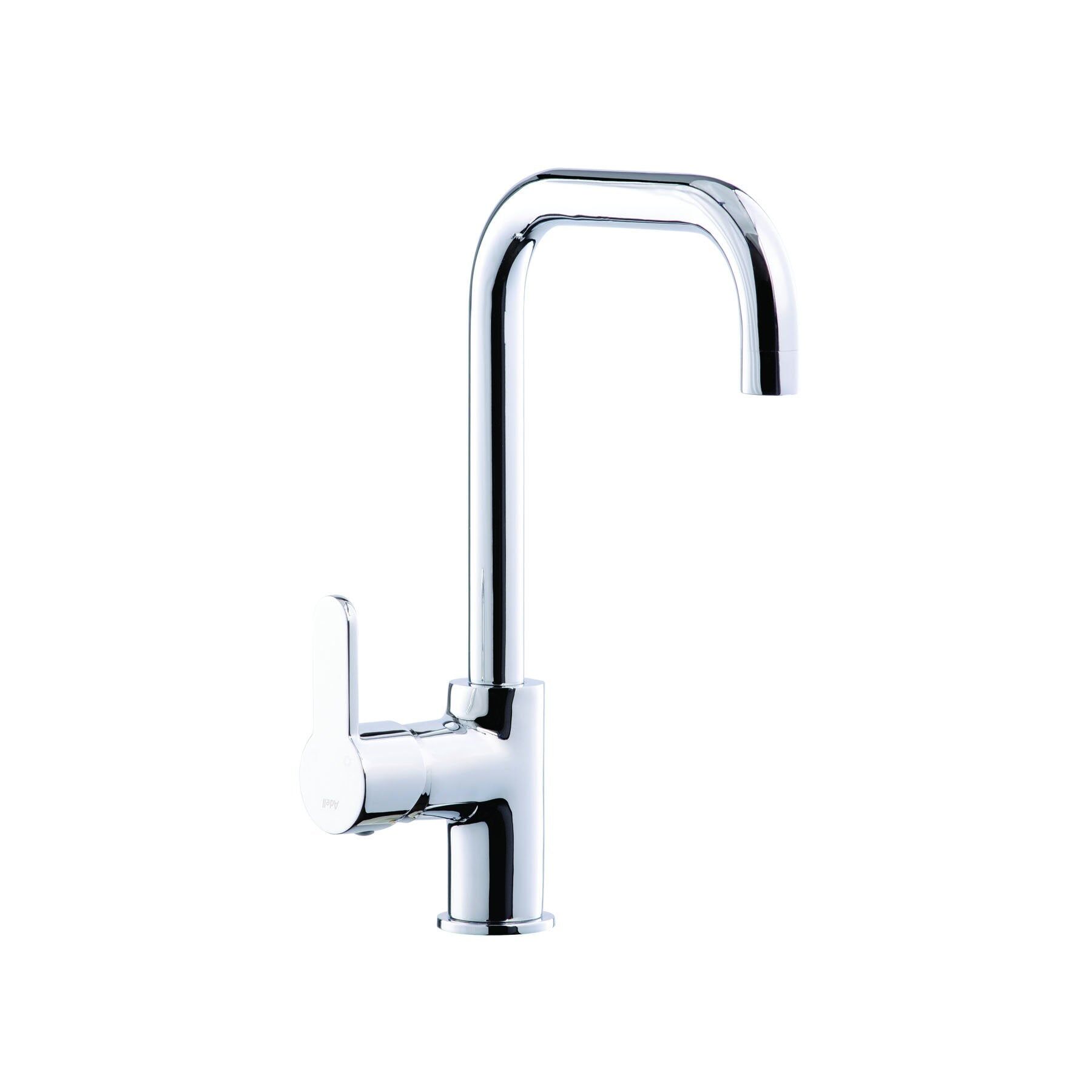

Lento S Mutfak Bataryası Döner Borulu - Chrome / 1/2''
3.150,00 TL
381,08 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Technical Information |
| Product Standard TS EN 817 (Single Control) |
| Manufacturer Warranty 6 Years (Painted And Coated Products For 2 Years) |
| Color / Finish Chrome |
| Aearator Type M22x1 Female Threaded |
| Flow Rate 7.5 - 9 Lt / Min (3 Bar) |
| Operation Type Ceramic Disc Cartridge Ø35 mm Without Leg |
| Acoustic Class II |
| Control Type Single Control |
| Installation Connection Type Countertop |
| Body Raw Material Brass |
| Spout Height 235 mm |
| Water Connection Flex Dimension 3/8" |
| Water Connection Flex Length 42.5 cm |
| Number Of Control Handle Single |
| Material Of Control Handle Metal |
| Dimension Of Base Rosette Ø50 mm |
| Number Of Loom Holes For Assembly 1 |
| Loom Hole Diameter Ø33±1 mm |
| Max. Loom Thickness 40 mm |
| Max. Performance Temperature 80°C |
| Suggested Performance Temperature 60°C |
| Max. Performance Pressure 10 Bar |
| Suggested Performance Pressure 3 Bar |
| Min. Performance Pressure 0.5 Bar |
| Suggested Min. Pressure 1 Bar |
| Spout / Pipe Type Swivel Spout (Above) |
| Pipe Height 220 mm |
| Pipe Length 180 mm |
| Product Total Height 325 mm |
Resources |
| 2D Technical Drawing (PDF) |
| TS EN 817 Certificate |
